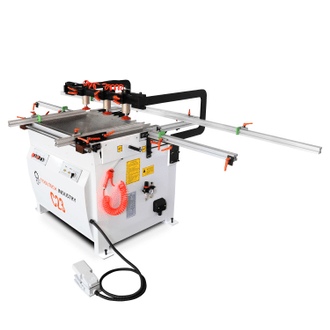

Tooltech’s C23 provides features that offer longer life, such as an operating pressure of 80-100psi and 23 quick-change adapters. With a 2HP motor (versus standard 3/4HP in most models) and stainless-steel spindles replacing steel spindles, Tooltech's C23 offers carpenters and woodworkers the opportunity to work with the most innovative construction line boring machine currently on the market.
Specifications:
Number of Spindles: 2332mm Center-to-Center Distance between Spindles (First & Last Drill = 27.7”)Maximum Drilling Depth: 2.5"Maximum Distance from Edge of the Board with a Head: 12”120" Line Boring Fence with 4 Stops2 HP Motor, 220V/3Ph./60Hz./3400rpm with Overload Protection3 Pneumatic Hold DownsPneumatic Foot PedalOperating Pressure of 80-100psiIncludes 23 Quick-Change AdaptersAccepts 10mm Shank Drill BitsNet Weight: 816lbs.Detentions: 56” x 40” x 46” HeightCrated Weight: 882lbs.Crated Dimensions: 61” x 44” x 50” Height
.jpg&height=578 "C23 Construction Line Boring 23 Spindles")
Pneumatic 13 Spindle Bench Top with Foot Pedal
Manual 13 Spindle Bench Top
.png&height=300 "MH3")
MH3 Hinge Boring Machine
